The Standard six foot
espresso cart specifications.
Composites:
Body material:
3/4" High density hardwood plywood's surfaced with quality true laminates,
front radius profile composed of the equivalent conformable materials.
Trim: Body material
specifications are the same as construction. Counter trim composed of 3/4"
by 2", hand finished cherry.
Base frame: A series
of 1" by 2" industrial, brushed aluminum Uchannel tubing mounted sandwiched
between the bottom of the cart and the castors..
Castors: 4" by 2"
industrial, rated at 900lbs capacity each with swivel locks to allow for
more ease of manuevers. Front castors are swivels with side lock
brakes, rear castors are bi-directional, which means they can alternate
between being swivels or can lock in place as straights which makes mobility
even through tight areas a breeze while being able to move over longer
distances without it dancing around.
Sneeze guard: 1/4"
Plexiglas, removable for easier transport.
Additional features:
-
Piano hinges and mounting assemblies
for extensions and supporting assemblies.
-
European hinges for door assemblies.
-
Quick disconnect fittings for
the wastewater and freshwater tanks.
-
Optional slide out removable
sink compartment for ease of use and maintenance which utilizes european,
ball bearing drawer slides.
-
A unique high tech rounded body
profile.
Water system:
2.5 gallon water heater
Under counter faucet and
hand sink
2, 5 gallon commercial grade
stainless steel freshwater tanks
1, 7 gallon waste water
tank
Electrical:
*We can accommodate those
that require a more independent electrical source which helps when you
are physically located some distance away from a wall by assembling a full
sized sub panel which will give you plenty of outlets to handle your equipment
including the 220v for your espresso machine.
The sub panel is an additional option priced at $450 in addition to the base cart costs. I surge protector is the standard option for all of our cart lines.
| *220V Sub Panel
We have attached 10 feet
of very heavy duty gauge 6 awg, water, solvent and oil resistant GSO cord
into a single phase 50 amp sub panel that includes 8, 110v outlets, one
30 amp, 220v outlet and all full sized G.E. brand load centers. We have
not skimped upon any detail involved within the construction of it and
have added a redundant grounding system so you can be assured safe, reliable
service for all of your equipment.
The breaker box is mounted
to it's own removable panel to make maintenance very easy on your electrician.
The industrial metal outlet housings are complimented with stainless steel
covers so they can be used and abused without having to worry about cracking.
The plug for the 220 volt outlet is supplied which makes it a snap for
any electrician to connect your cart to the building. |
|
The following are the standard
options and price adjustments.
Plumbing options:
Slide Out Sink Compartment
(shown) +$50.00
Under Counter Sink Compartment
+0.00
Flojet Water Bottle system
-200
Additional Sinks and systems - Call
Counter Trim:
Cherry (shown) +$130.00
Walnut +$170.00
Maple +$150.00
Oak +$100.00
Rubber bumper -$0.00
Exotics - Call
Body Trim:
Single (shown):
+ $0.00
Dual + $200.00
Triple tier + $400.00
Custom - Call
Laminate/surfacing choices.
We remain flexible
in this area and are always trying out new things, if you have an idea,
we can accommodate you one way or the other. Laminates "commonly
called by a manufacturer of it termed as "Formica"" is the base surfacing
material we choose to insure all of the surfaces are durable and easily
cleaned. If you have a specific color choice based upon the current
laminate manufacturers i.e. Wilsonart,
Formica,
etc. we can use what every you have decided upon.
This is a simple diagram
to show the dimensions and a brief feature overview.
All of our espresso cart dimensions
are based upon moving through the standard residential one way door way,
reference: http://justwoodworking.com/charts/heights.php
for more information about what the proper dimensions should be for general
construction, much less something designed to be moved in and out of doors.
Taking this into further consideration, most health department requirements
require all espresso carts vending on a public walk way out doors to be
no larger then 6' long by 36" depth for the counter with the fold down/removable
extensions to not exceed 18" by 36" each. We choose not to limit
our clients to only being able to operate indoors or have to undergo unnecessary
headaches if they decide to change locations, but if you do require larger
dimensions, by all means, we will accomodate you.
You'll see by the numbers that this is indeed a full sized espresso cart
that can handle any business volume and support all of the regular full
sized commercial equipment compliment. Our 2005 lines take things
one step further by modularizing the body construction system all together.

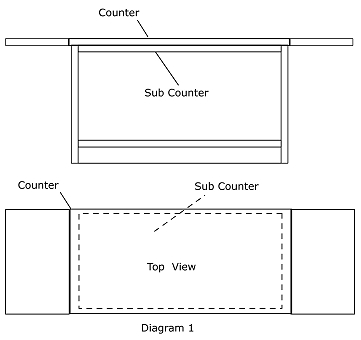

Refer to Diagram 1.
To expand further upon the structure,
the 1" by 2" aluminum tubing uchannel is layered between the base plate
"espresso cart floor" and the castors themselves, bolted directly through
all layers using heavy duty carriage bolts. The rounded profile also
adds to the structure by using a time tested arch type system and even
the dividers further stabilize the structure. All elements combined
with tremendous torque levels throughout make this the absolute strongest
espresso cart in the industry hands down. In addition to this, there
are no welds to break, the frame will not rust, and all contingencies outside
of an act of God have been well prepared for within it's design.
